Product Introduction

1、The YRT series Elbow Hot Forming Machine is designed mainly for manufacturing SR&LR elbows of carbon steel and alloy steelwith max

     outside diameter up to 1400mm. These elbows are widely used in the connection of the industrial pipelines for the Petrochemical,

     Gas and Oil pipes,Electrical Power,Food,etc.

2、It has individual power construction and electrical system,adopts PLC centre control,machine is much easy to be operated.

3、It has two heating method:High Frequency and Intermediate Frequency.

4、The application of numerical control plus automatic frequency control mande the pushing speed and forming temperature could be

     monitored and contrilled easily,which enables the high quality;

5、It is suitable for batch production.

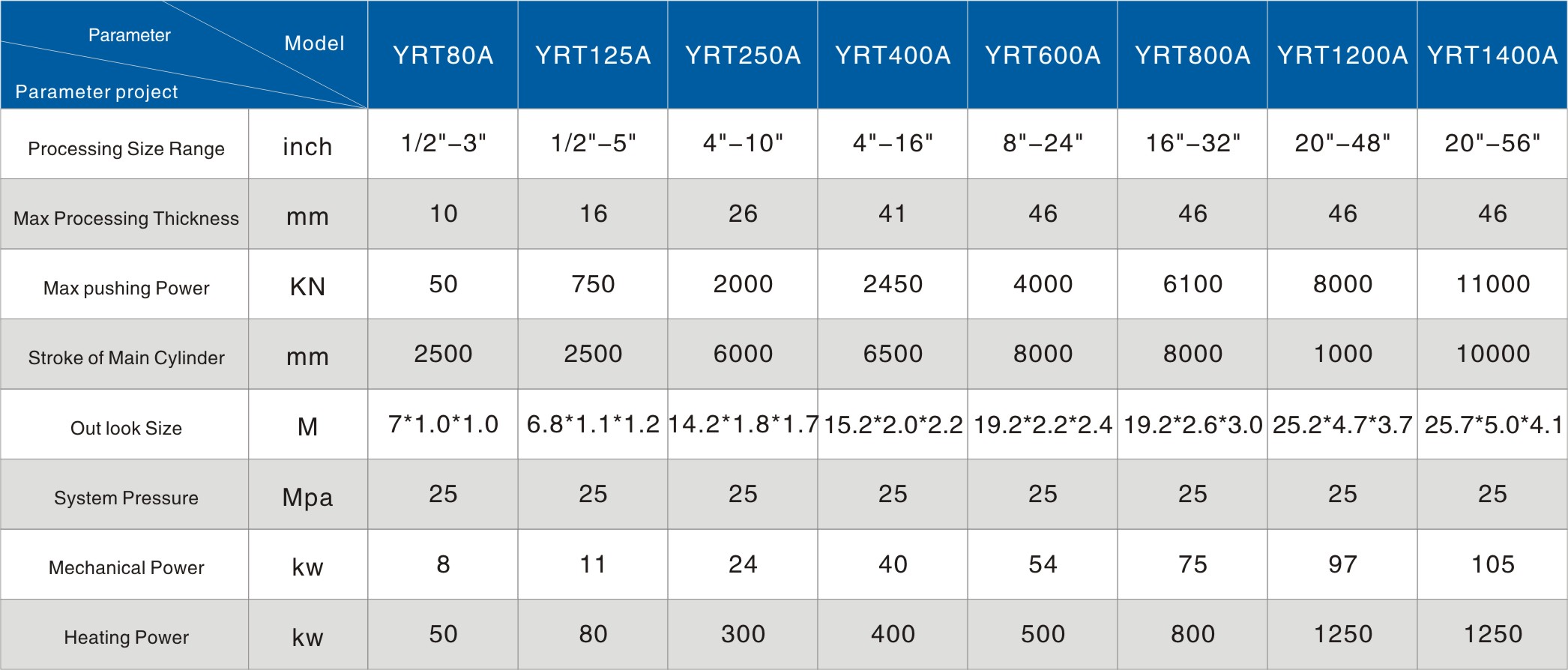

Technical Parameters
